High-end aluminum, durable, and competitive—the CAAD14 appeals to riders who value performance and dependability without sacrificing modern features like disc brakes and wide tire clearance.
Cult Evangelists & New Generation
CAAD14 speaks to long-time CAAD fans who love its legacy and to new riders discovering the appeal of alloy bikes. It’s about joining the “cult of CAAD,” where heritage.
ATTRIBUTES
Race-Ready Geometry with all-road capability for versatility
Modern Integration: internal cable routing, Delta steerer, compatibility with aero components.
Value & Longevity: a bike that lasts, with timeless design and proven alloy construction.
Aesthetic Appeal: classic silhouette with oversized tubes and clean welds—honest, crafted, and unapologetically aluminum.
FEATURES
UDH - Universal by Nature
The UDH dropout makes the CAAD14 easy to live with—replacement hangers are simple to find anywhere thanks to its universal fit. When paired with SRAM’s Full Mount derailleurs, the same design also opens the door to broader gearing setups and future-proof builds.
BSA Bottom Bracket
The 68mm BSA bottom bracket brings threaded reliability to the CAAD14 — easy to service, easy to trust, a pleasure to own.
Delta Steerer + Full Carbon Fork
The unique-to-Cannondale, Delta Steerer keeps your cockpit tidy and cables routed internally. While the reduced frontal area brings aero gains to the party, as well as sleeker good looks.

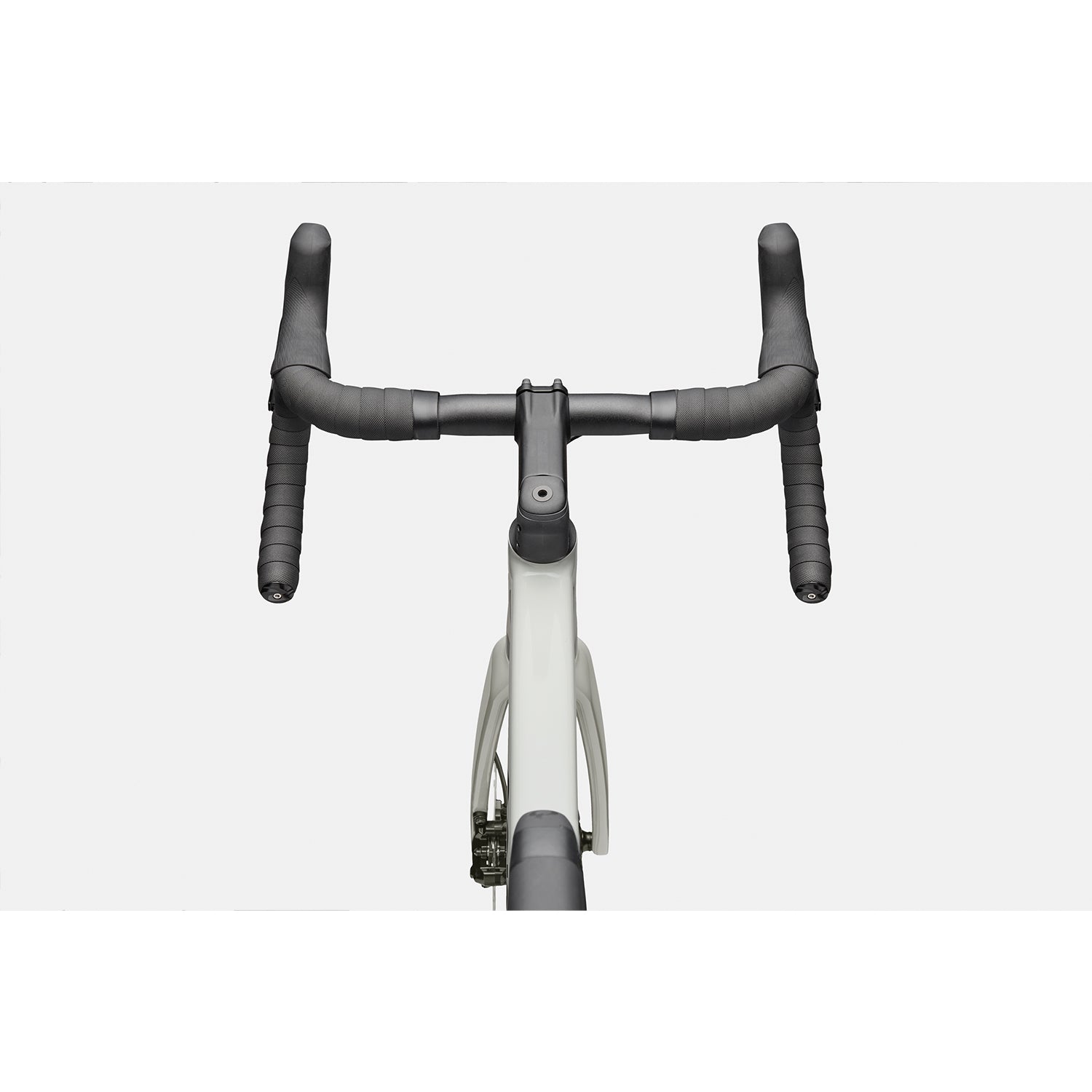

SystemBar R-One
Exceptional aero meets confident control. In collaboration with MOMODesign, this cockpit blends drag-reducing shapes and clean cable integration with refined ergonomics and style.
32mm Tyre Clearance
Fits tires with a measured width of up to 32mm, with 4mm of clearance on all sides—delivering enhanced grip, comfort, and control across real-world road surfaces.
SPECIFICATIONS
Model Code: C13024U
Frame: CAAD14 SmartForm C1 Premium Alloy, integrated cable routing, 12x142mm thru-axle, BSA 68mm threaded BB, flat mount disc, UDH
Fork: CAAD14 full carbon, 1-1/8" to 1-1/2" Delta steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing

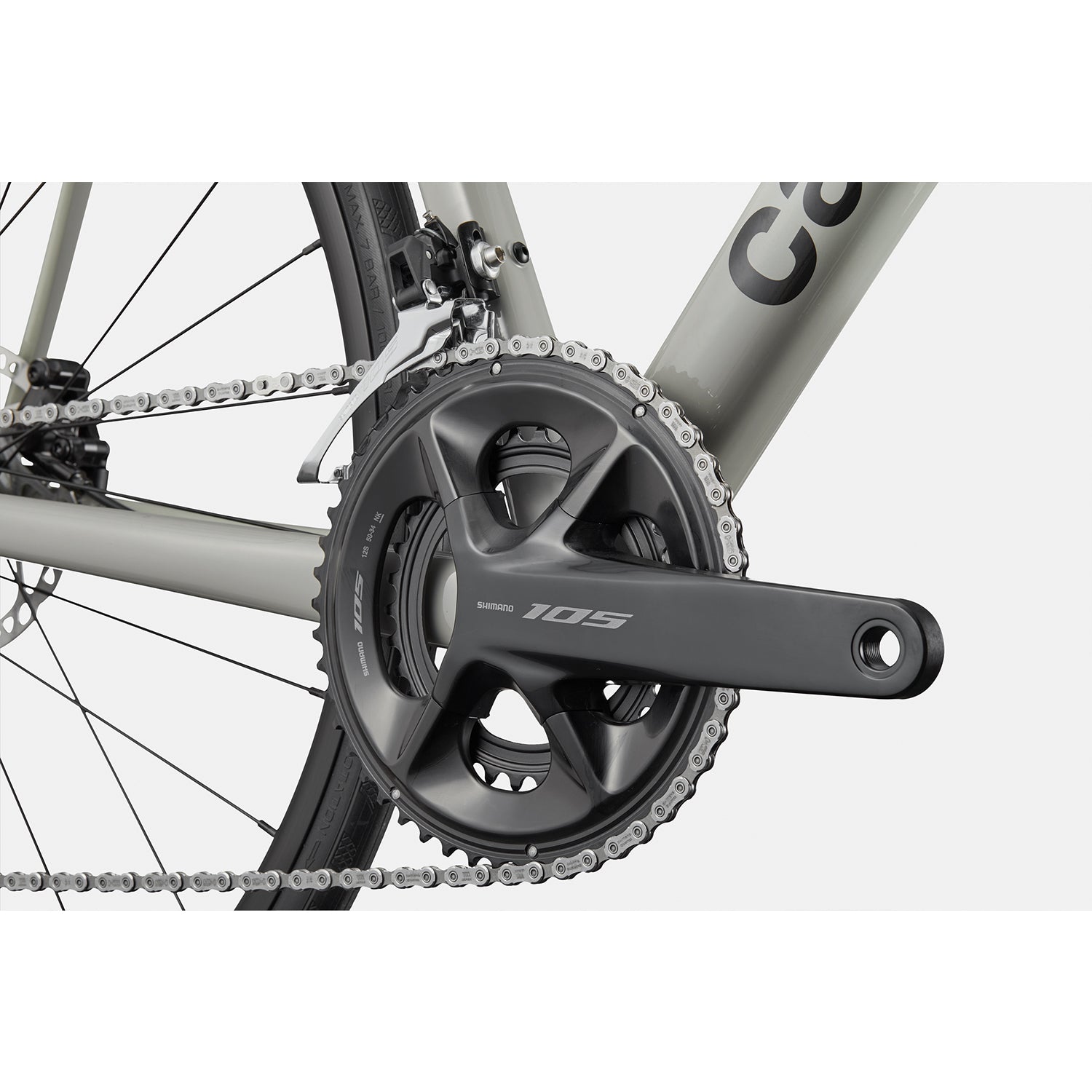

Crankset: Shimano 105 R7100, 50/34T
Bottom Bracket: Shimano BB-RS500, BSA 68
Cassette: Shimano 105 R7100, 11-34T, 12-speed
Chain: Shimano 105 7100, 12-speed
Front Derailleur: Shimano 105 R7100

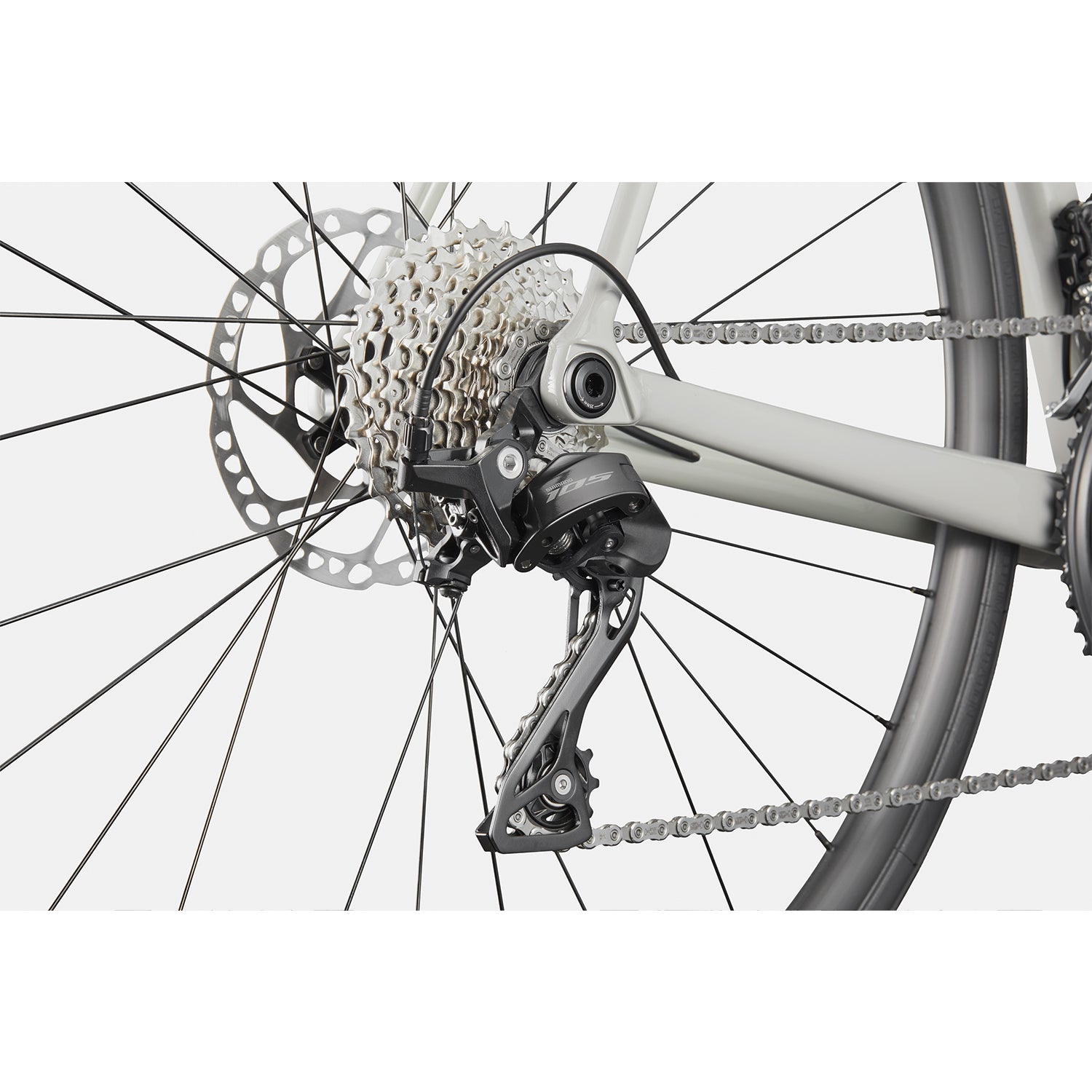

Rear Derailleur: Shimano 105 R7100, 12-speed
Shifters: Shimano 105 R7100, 2x12-speed
Brakes: Shimano 105 R7170 hydraulic disc, 160mm rotors
Brake Levers: Shimano 105 hydraulic disc
Wheelset: Cannondale RD 2.0 Disc rims with Shimano TC500 hubs
Spokes: Stainless steel, 14g
Tyres: Vittoria Zaffiro, 700x28c
Handlebar: Vision Trimax Compact
Stem: Cannondale C1 Conceal alloy stem, -6°
Bar Tape: Cannondale bar tape, 3.5mm
Saddle: Prologo Nago RS STN
Seatpost: Cannondale 3 alloy, 27.2mm x 350mm, 11mm offset
